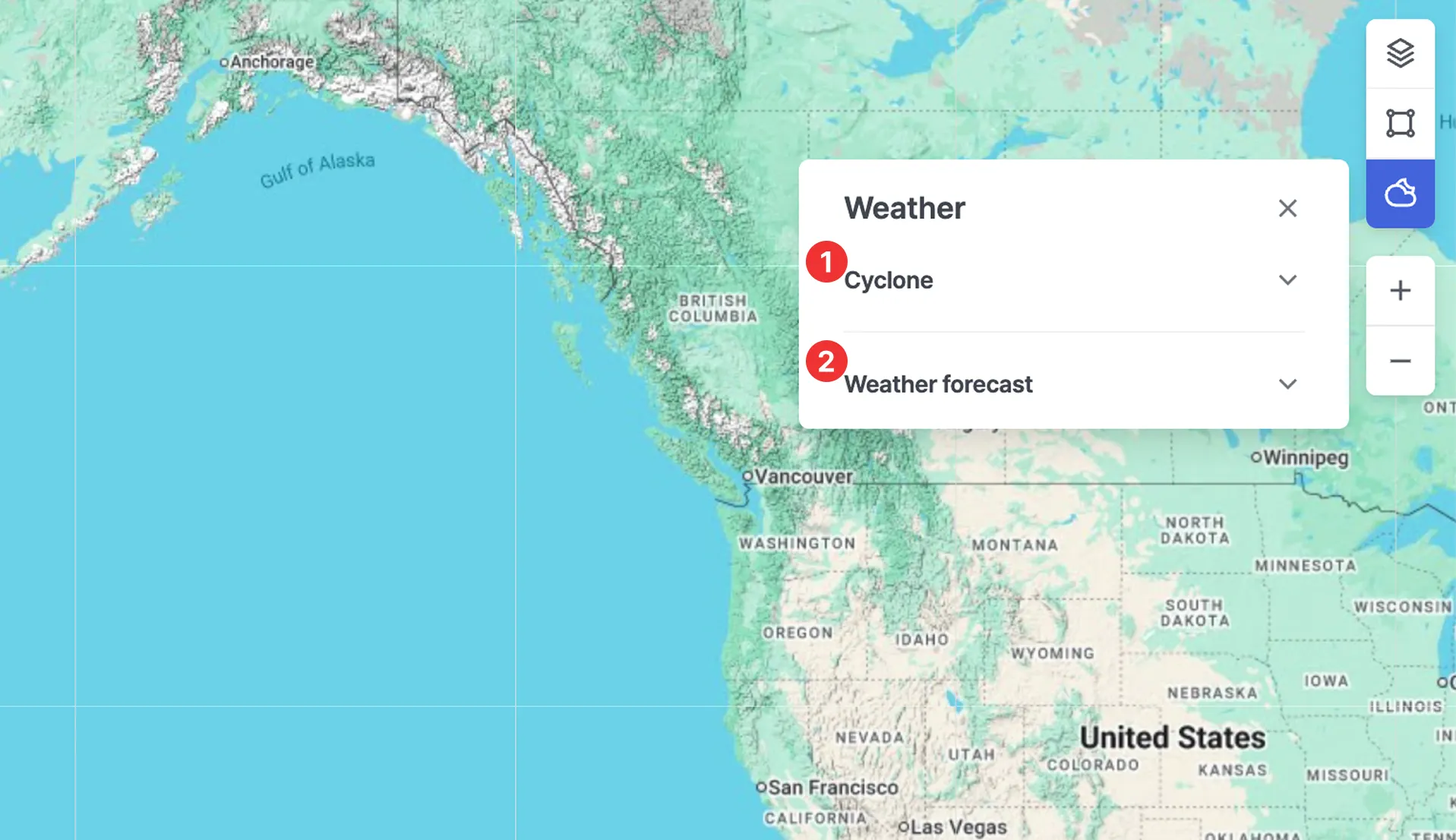

The Weather Panel provides tropical cyclone information and detailed marine weather forecasts.
1. Cyclone (Tropical Cyclone / Typhoon)
•
Displays official cyclone warnings and forecast information published by the Joint Typhoon Warning Center (JTWC).
•
Cyclone intensity can be identified through the color of each cyclone path.
•
Shows a list of currently active cyclones.
•

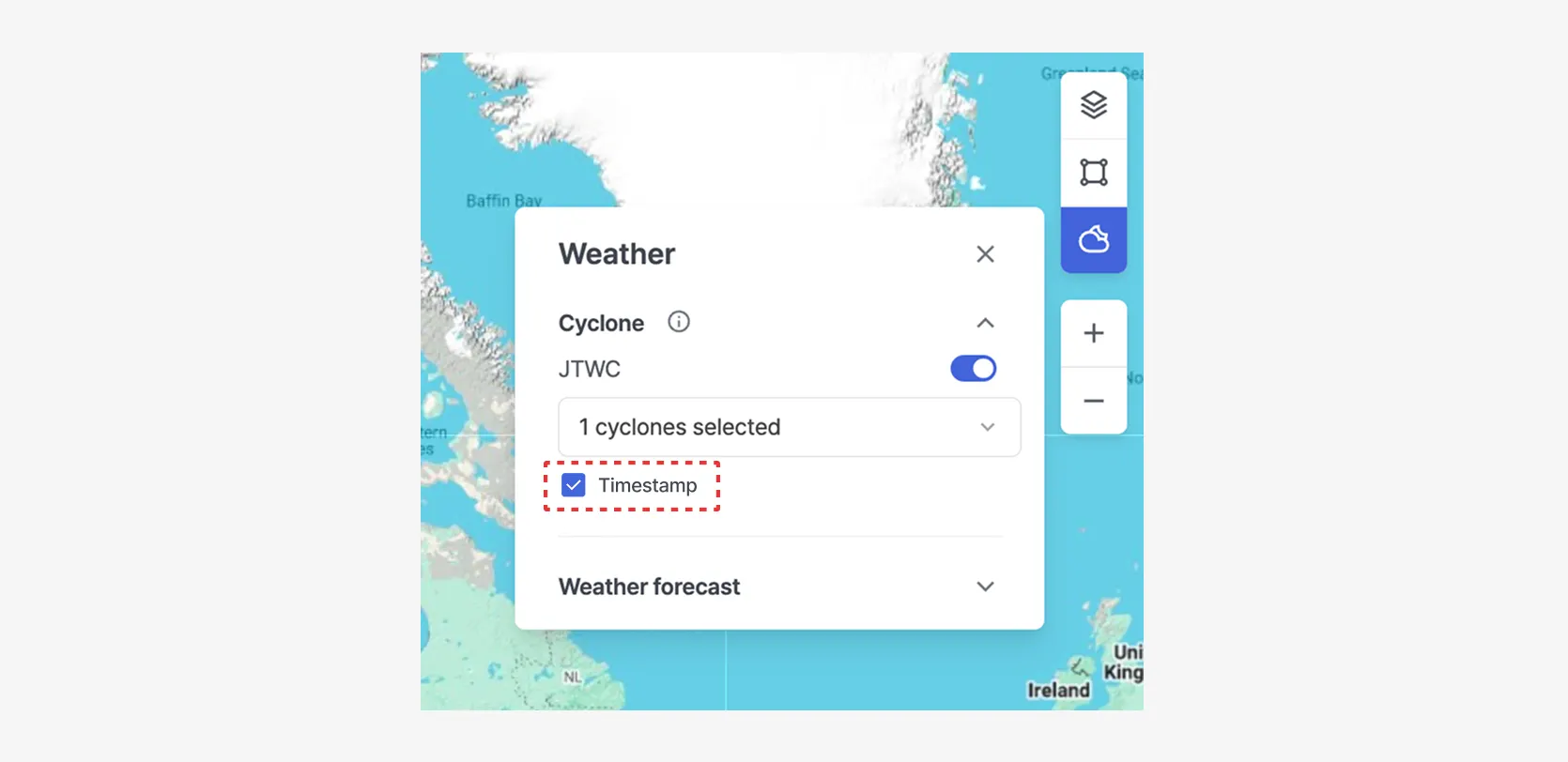

Displays the timestamp indicating when the cyclone information was received.
2. Weather Forecast
•
Current: Shows ocean current direction and speed.
•
Wind: Shows surface wind direction and wind speed.
•
Wave: Shows wave height and wave direction.
•
Swell: Shows swell height and swell direction.
•

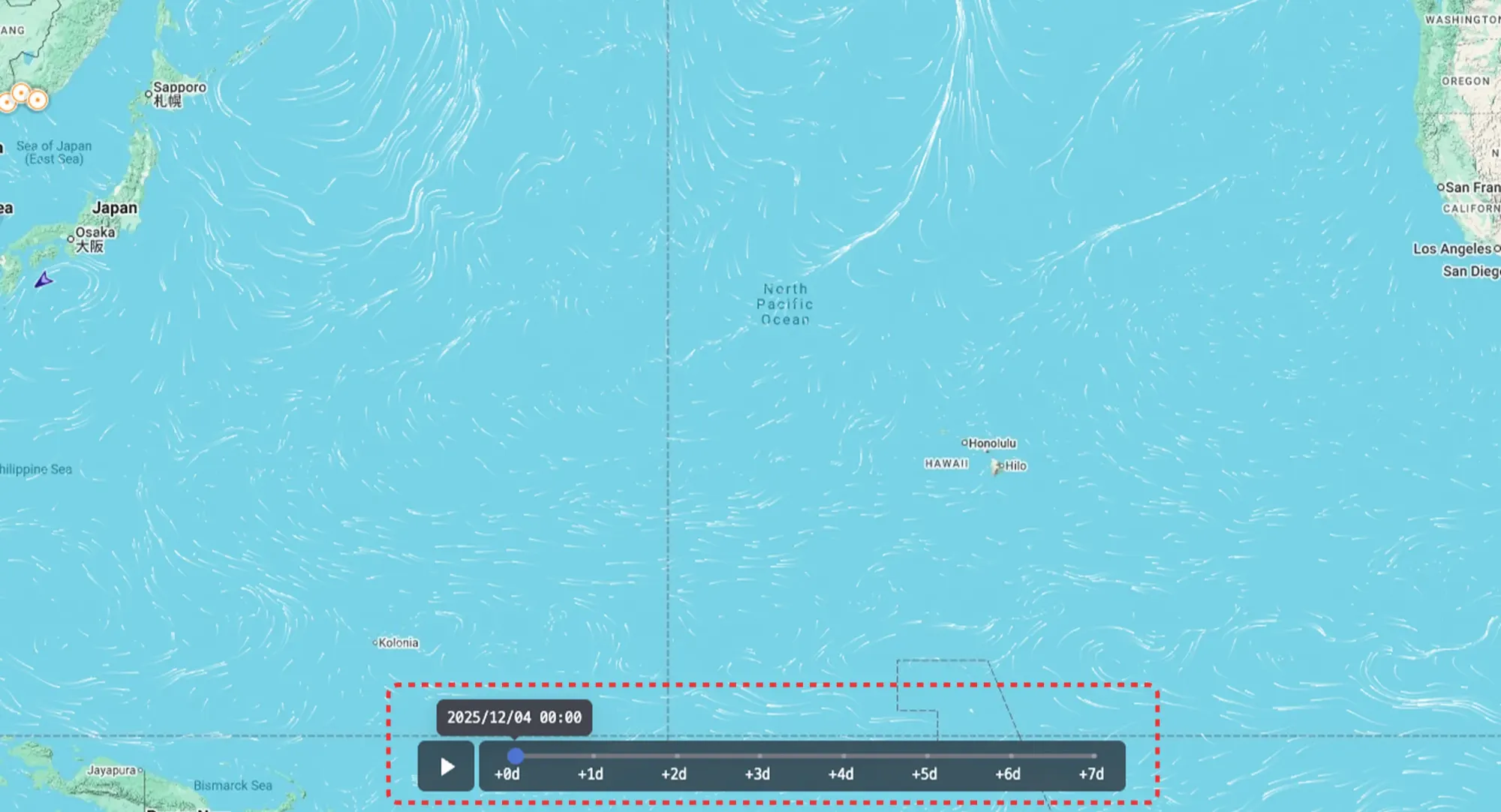

Select a date on the time bar to view forecast data for that day.
•
Click the play button on the time bar to animate the forecast in chronological order.
Note: While the animation is playing, zoom-level changes and other interactions are not available.
•
Weather forecasts are displayed using 1-degree data by default, 0.5-degree data at zoom levels 6–7, and 0.25-degree data at zoom level 8 or higher.
