[GET] /port-insight/previous-calling/ship-type-sizes

This API returns port-level cargo volume data categorized by vessel type/size.

Go to Swagger Documentation

Authentication

The Port Previous Calling API uses Basic Authorization on Swagger UI.

Authentication Steps

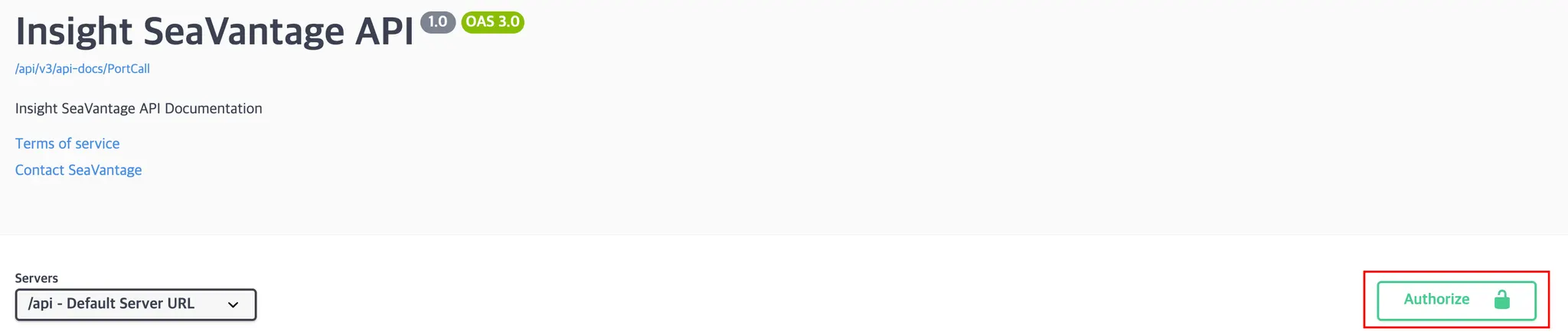

Click the [Authorize] button in the top right corner.

Enter the provided username and password in the pop-up window.

Click [Authorize] again to proceed with authentication.

After successful login, click [Close] to close the window.

All API requests from Swagger UI will automatically include the authorization token.

Request Information

Request URL

Request URL : [GET] https://insight.seavantage.com/api/port-insight/previous-calling/ship-type-sizes

Execution Steps

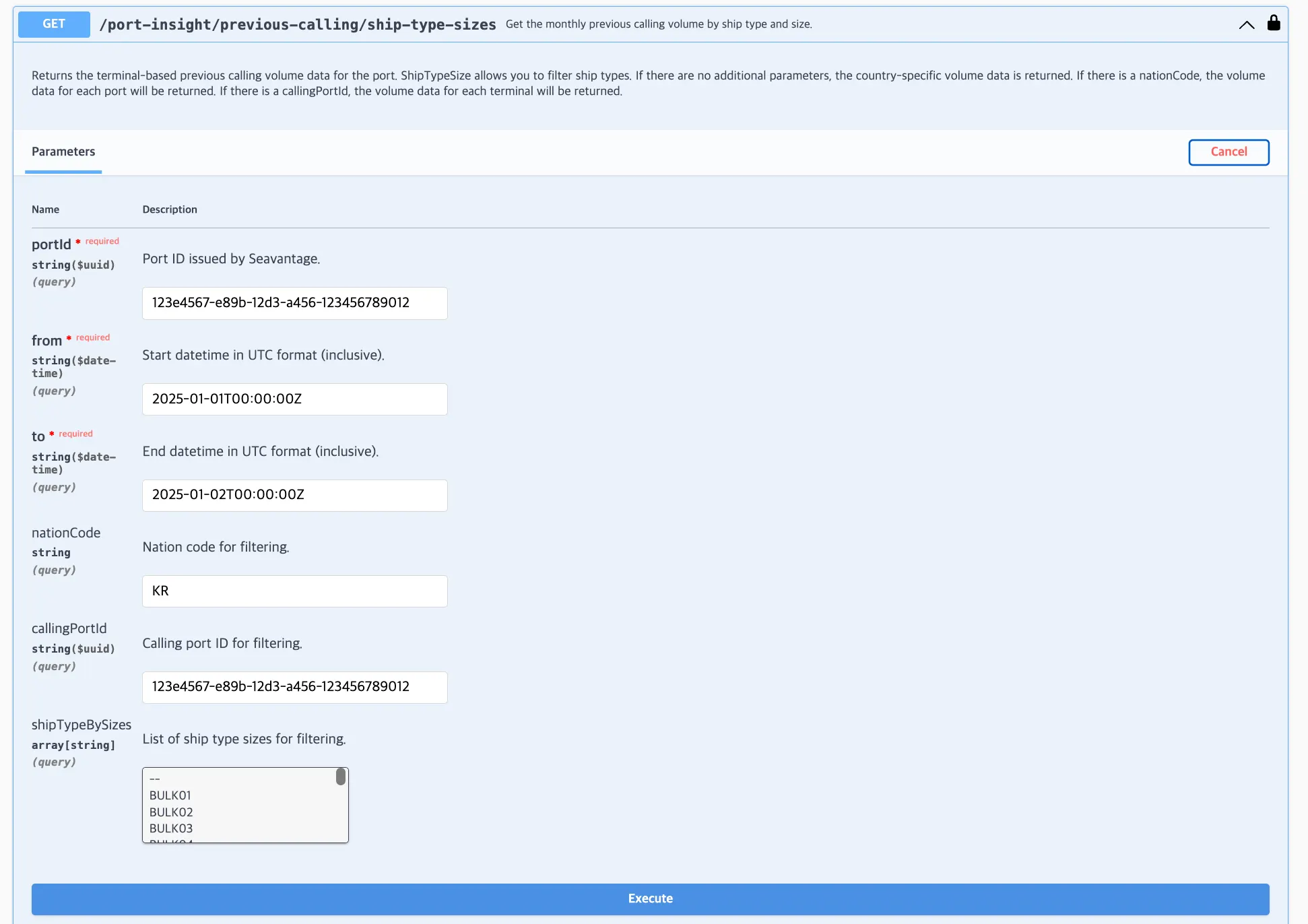

In the Swagger Documentation, select  Port Insight from the Select a definition menu at the top right.

Navigate to the /previous-calling/ship-type-sizes endpoint.

Click [Try it out] to activate input fields.

Enter values according to the following request parameters:

•

Enter values according to the following request parameters:

◦

portId (required)

▪

The unique Port ID issued by SeaVantage.

▪

Can be obtained through the [GET] /port API

◦

from (required)

▪

Start date and time of query (in UTC)

▪

Example: 2025-01-01T00:00:00Z

◦

to (required)

▪

End date and time of query (in UTC)

▪

Example: 2025-01-01T00:00:00Z

◦

shipTypeBySizes (optional)

▪

Ship type size list filter (Refer to the ship type size classification table)

▪

Multiple values supported

•

previousCallingNationCode (optional)

◦

Filter by previous calling nation code when querying

•

previousCallingPortId (optional)

◦

Filter by portId of the previous port of call

◦

Can be obtained through the [GET] /port API

Click [Execute].

View results in the response section.

Response Information

The response is returned in the following format, regardless of whether the request is successful or failed.

Response Examples (by Condition)

The response will vary depending on the parameters entered. Please refer to the examples below for each condition:

•

When only port and ship type size information are entered → Returns the number of ships and monthly cargo volume at the country level

•

When the nationCode of the previous calling port is entered → Returns the number of ships and monthly cargo volume at the port level

•

When both the nationCode and portId of the previous calling port are entered → Returns the number of ships and monthly cargo volume at the terminal level

Entering portId + from + to

•

Based on the target port → Returns the number of ships and monthly cargo volume at the country level for the previous calling port.

{
  "code": 200,
  "message": "OK",
  "error": false,
  "timestamp": "2025-08-18T08:53:58.569647467",
  "response": [
    {
      "key": "CN",
      "value": "China",
      "shipCount": 100,
      "volume": 7099721
    }
  ]
}
JavaScript
복사

Entering portId + from + to + shipTypeBySizes

•

Based on ship type size → Returns the number of ships and monthly cargo volume at the country level for the previous calling port.

{
  "code": 200,
  "message": "OK",
  "error": false,
  "timestamp": "2025-08-18T08:53:58.569647467",
  "response": [
    {
      "key": "CN",
      "value": "China",
      "shipCount": 100,
      "volume": 7099721
    }
  ]
}
JavaScript
복사

Entering portId + from + to + previousCallingNationCode

•

Based on the target port → Returns the number of ships and monthly cargo volume at the port level for the previous calling port.

{
  "code": 200,
  "message": "OK",
  "error": false,
  "timestamp": "2025-08-18T08:56:01.474372636",
  "response": [
    {
      "key": "3ad979b4-9370-11ea-b3ad-049226dae5ce",
      "value": "Gwangyang",
      "shipCount": 48,
      "volume": 1175679
    }
  ]
}
JavaScript
복사

Entering portId + from + to + shipTypeBySizes + previousCallingNationCode

•

Based on ship type size → Returns the number of ships and monthly cargo volume at the port level for the previous calling port.

{
  "code": 200,
  "message": "OK",
  "error": false,
  "timestamp": "2025-08-18T08:56:01.474372636",
  "response": [
    {
      "key": "3ad979b4-9370-11ea-b3ad-049226dae5ce",
      "value": "Gwangyang",
      "shipCount": 48,
      "volume": 1175679
    }
  ]
}
JavaScript
복사

Entering portId + from + to + previousCallingNationCode + previousCallingPortId

•

Based on the target port → Returns the number of ships and monthly cargo volume at the terminal level for the previous calling port.

{
  "code": 200,
  "message": "OK",
  "error": false,
  "timestamp": "2025-08-18T08:57:55.601328709",
  "response": [
    {
      "key": "8932aaf6-7882-11ec-a285-049226dae5ce",
      "value": "GWANGYANG WEST CONTAINER TERMINAL",
      "shipCount": 25,
      "volume": 788658
    }
  ]
}
JavaScript
복사

Entering portId + from + to + shipTypeBySizes + previousCallingNationCode + previousCallingPortId

•

Based on ship type size → Returns the number of ships and monthly cargo volume at the terminal level for the previous calling port.

{
  "code": 200,
  "message": "OK",
  "error": false,
  "timestamp": "2025-08-18T08:57:55.601328709",
  "response": [
    {
      "key": "8932aaf6-7882-11ec-a285-049226dae5ce",
      "value": "GWANGYANG WEST CONTAINER TERMINAL",
      "shipCount": 25,
      "volume": 788658
    }
  ]
}
JavaScript
복사

Response Field Descriptions

Top-Level Response Fields

Field	Example Value	Description
code	200	Response status code (used in the same way as standard HTTP status codes). See the list of codes below for reference.
message	OK	Response message (description based on status)
error	false	Error flag true: error occurred false: successful processing
timestamp	2025-05-14T01:09:00.834665213	Time of response creation (UTC)
response	Array or Empty Array	Returns an array if data exists; returns an empty array if no data exists

Response Codes

Code	Description
200	Success
400	Bad request
401	Unauthorized
403	Forbidden
422	Unprocessable entity
429	Too many requests

Detailed Response Description

Depth 1 Field Description (response object)

Field	Example Value	Description	Data Type
key	nationCode, portId, terminalId	Code and ID value of the selected nation/port/terminal	varchar
value	nationName, portName, terminalName	Name of the selected nation/port/terminal	varchar
shipCount	10	Number of vessels	integer
volume	10	Volume (unit: DWT)	integer

Appendix

Ship Type by Size Classification

Bulk Carrier

Classification Code	Classification	Lower Range (DWT)	Higher Range (DWT)
BULK 05	Handysize	0	34,999
BULK 04	Handymax	35,000	59,999
BULK 03	Panamax	60,000	79,999
BULK 02	Capesize	80,000	179,999
BULK 01	VLBC	180,000

Chemical Tanker

Classification	Vessel Type	Classification
CHEMICAL_TANKER01	Product Tanker	Chemical tanker, combined chemical and oil tanker

Container

Classification Code	Classification	Lower Range (TEU)	Higher Range (TEU)
CONTAINER 07	Small Feeder	0	1,000
CONTAINER 06	Feeder Containership	1,001	2,000
CONTAINER 05	Feedermax Containership	2,001	3,000
CONTAINER 04	Panamax Containership	3,001	5,100
CONTAINER 03	Post-Panamax Containership	5,101	10,000
CONTAINER 02	Neo-Panamax Containership	10,001	14,500
CONTAINER 01	ULCV Containership	14,501

Cargo

Classification Code	Classification	Lower Range (DWT)	Higher Range (DWT)
CARGO 04	General Cargo	0	2,999
CARGO 03	General Cargo	3,000	7,499
CARGO 02	General Cargo	7,500	37,999
CARGO 01	General Cargo	38,000

LNG

Classification Code	Classification	Lower Range (Gross Tonnes)	Higher Range (Gross Tonnes)
LNG 03	LNG Gas Carrier	0	73,000
LNG 02	LNG Gas Carrier	73,001	147,000
LNG 01	LNG Gas Carrier	147,001

LPG

Classification Code	Classification	Lower Range (Gross Tonnes)	Higher Range (Gross Tonnes)
LPG 03	LPG Gas Carrier	0	4,500
LPG 02	LPG Gas Carrier	4,501	26,000
LPG 01	LPG Gas Carrier	26,001

Pure Car Carrier (PCC)

Classification Code	Classification	Lower Range (Gross Tonnes)	Higher Range (Gross Tonnes)
PCC 03	PCC/PCTC	0	35,000
PCC 02	PCC/PCTC	35,001	61,000
PCC 01	PCC/PCTC	61,001

Ro-ro

Classification Code	Classification	Lower Range (Gross Tonnes)	Higher Range (Gross Tonnes)
RORO 03	Ro-ro Cargo	0	0
RORO 02	Ro-ro Cargo	8,501	48,000
RORO 01	Ro-ro Cargo	48,001

Tanker

Classification Code	Vessel Type	Classification
TANKER 05	Crude Oil Tanker	Tanker- Panamax
TANKER 04	Crude Oil Tanker	Tanker- Aframax
TANKER 03	Crude Oil Tanker	Tanker- Suezmax
TANKER 02	Crude Oil Tanker	Tanker- VLCC
TANKER 01	Crude Oil Tanker	Tanker- ULCC

Product Tanker

Classification	Vessel Type
PRODUCT_TANKER01	Product Tanker

Tug

Classification	Vessel Type
TUG01	Tug

FPSO

Classification	Vessel Type	Classification
FPSO01	FPSO	Floating drilling production tanker, floating gas production, floating gas storage, floating LNG production and storage FLNG, floating power station, floating production tanker, floating storage tanker

ETC

Classification	Vessel Type
ETC01	ETC All
