This API returns the next calling monthly cargo volume data, categorized by ship type and size.
Authentication
The Port Next Calling API uses Basic Authorization on Swagger UI.
Authentication Steps
1.

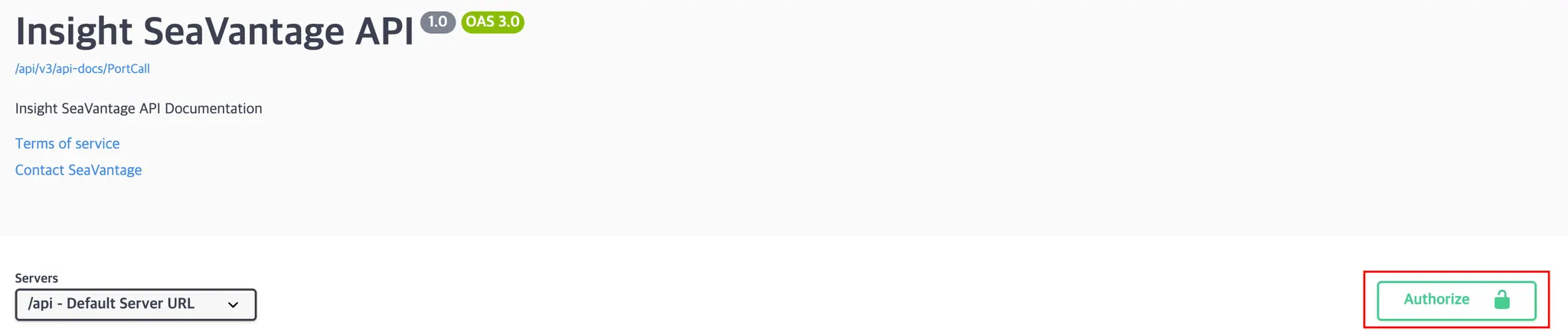

Click the [Authorize] button in the top right corner.
2.
Enter the provided username and password in the pop-up window.
3.
Click [Authorize] again to proceed with authentication.
4.
After successful login, click [Close] to close the window.
All API requests from Swagger UI will automatically include the authorization token.
Request Information
Request URL
Request URL :
[GET] https://insight.seavantage.com/api/port-insight/next-calling/monthly/ship-type-sizes

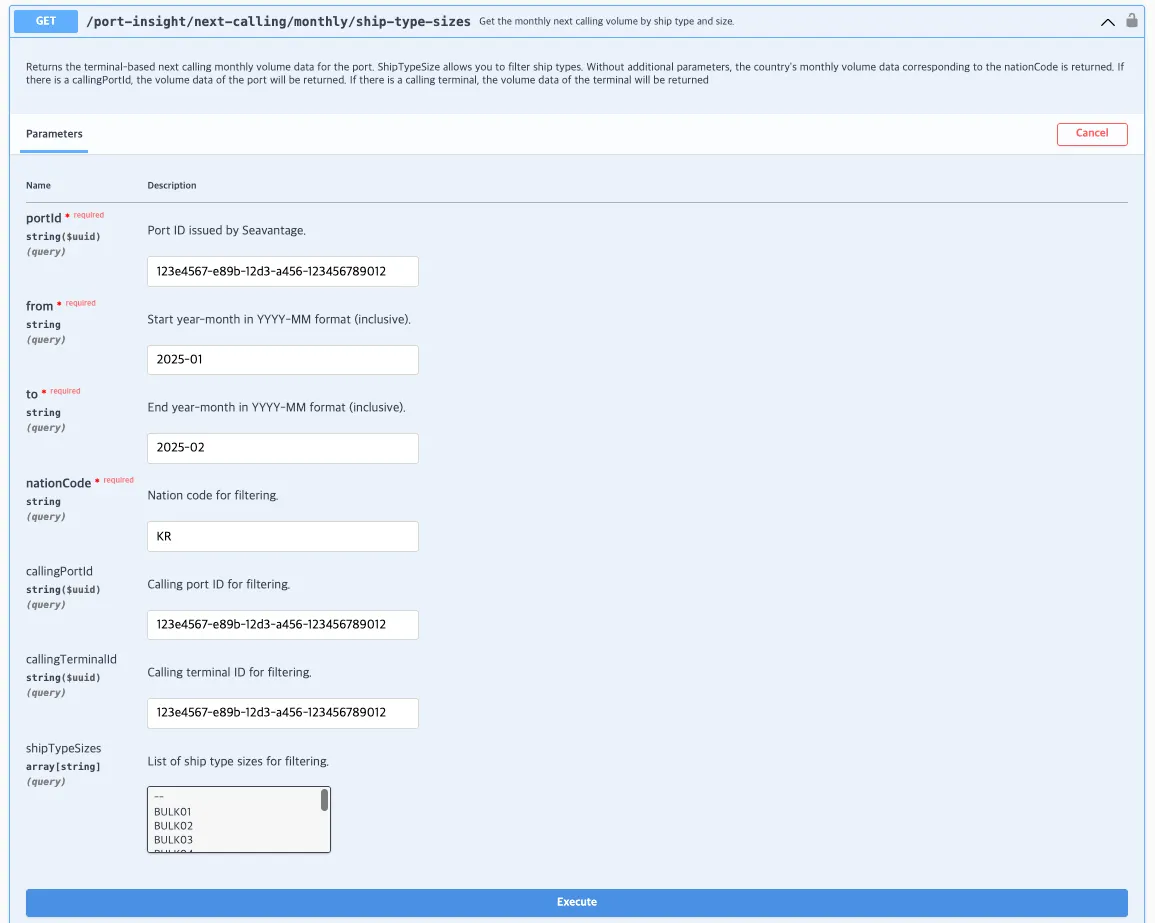

Execution Steps
1.
In the Swagger Documentation, select Port Insight from the Select a definition menu at the top right.
2.
Navigate to the /port-insight/next-calling/monthly/ship-type-sizes endpoint.
3.
Click [Try it out] to activate input fields.
4.
Enter values according to the following request parameters:
•
portId (required)
◦
The unique Port ID issued by SeaVantage.
◦
•
from (required)
◦
Start date and time of query (in UTC)
◦
Example: 2025-01-01T00:00:00Z
•
to (required)
◦
End date and time of query (in UTC)
◦
Example: 2025-01-01T00:00:00Z
•
nextCallingNationCode (required)
◦
Filter by the nation code for the next calling country when querying
•
shipTypeBySizes (optional)
◦
Ship type size list filter (Refer to the ship type size classification table)
◦
Multiple values supported
•
nextCallingPortId (optional)
◦
Port ID filter for the next calling port
◦
•
nextCallingTerminalId (optional)
◦
Terminal ID filter for the next calling terminal
◦
5.
Click [Execute].
6.
View results in the response section.
Response Information
The response is returned in the following format, regardless of whether the request is successful or failed.
Response Examples
The response will vary depending on the parameters entered. Please refer to the examples below for each condition:
•
When only port and nationCode of the next calling port are specified → Returns the number of vessels and monthly volume for the specified country.
•
When nationCode + portId of the next calling port are specified → Returns the number of vessels and monthly volume for the specified port.
•
When nationCode + portId + terminalId of the next calling port are specified → Returns the number of vessels and monthly volume for the specified terminal.
Response Examples (by Condition)
Request Condition | Description |
portId + from + to + nextCallingNationCode | Based on the target port
→ Returns the number of vessels and monthly throughput for the next calling country |
portId + from + to + terminalIds + nextCallingNationCode | Based on ship type/size
→ Returns the number of vessels and monthly throughput for the next calling country |
portId + from + to + nextCallingNationCode + nextCallingPortId | Based on the target port
→ Returns the number of vessels and monthly throughput for the next calling port |
portId + from + to + terminalIds + nextCallingNationCode + nextCallingPortId | Based on ship type/size
→ Returns the number of vessels and monthly throughput for the next calling port |
portId + from + to + nextCallingNationCode + nextCallingPortId + nextCallingTerminalId | Based on the target port
→ Returns the number of vessels and monthly throughput for the next calling terminal |
portId + from + to + terminalIds nextCallingNationCode + nextCallingPortId + nextCallingTerminalId | Based on ship type/size
→ Returns the number of vessels and monthly throughput for the next calling terminal |
Response Structure (Common)
{
"code": 200,
"message": "OK",
"error": false,
"timestamp": "2025-08-20T07:20:58.866535036",
"response": [
{
"yearMonth": "2025-01",
"shipCount": 633,
"volume": 7404170
}
]
}
JavaScript
복사
Response Field Descriptions
Top-Level Response Fields
Field | Example Value | Description |
code | 200 | Response status code (used in the same way as standard HTTP status codes).
See the list of codes below for reference. |
message | OK | Response message (description based on status) |
error | false | Error flag
true: error occurred
false: successful processing |
timestamp | 2025-05-14T01:09:00.834665213 | Time of response creation (UTC) |
response | Array or Empty Array | Returns an array if data exists; returns an empty array if no data exists |
Response Codes
Code | Description |
200 | Success |
400 | Bad request |
401 | Unauthorized |
403 | Forbidden |
422 | Unprocessable entity |
429 | Too many requests |
Detailed Response Description
Depth 1 Field Description (response object)
Field | Example Value | Description | Data Type |
yearMonth | 2025-01 | Year-Month | varchar(7) |
shipCount | 10 | Number of Vessels | Long |
volume | 10 | Volume (Unit: DWT) | Long |
Appendix
Ship Type by Size Classification
Bulk Carrier
Classification Code | Classification | Lower Range (DWT) | Higher Range (DWT) |
BULK 05 | Handysize | 0 | 34,999 |
BULK 04 | Handymax | 35,000 | 59,999 |
BULK 03 | Panamax | 60,000 | 79,999 |
BULK 02 | Capesize | 80,000 | 179,999 |
BULK 01 | VLBC | 180,000 |
Chemical Tanker
Classification | Vessel Type | Classification |
CHEMICAL_TANKER01 | Product Tanker | Chemical tanker, combined chemical and oil tanker |
Container
Classification Code | Classification | Lower Range (TEU) | Higher Range (TEU) |
CONTAINER 07 | Small Feeder | 0 | 1,000 |
CONTAINER 06 | Feeder Containership | 1,001 | 2,000 |
CONTAINER 05 | Feedermax Containership | 2,001 | 3,000 |
CONTAINER 04 | Panamax Containership | 3,001 | 5,100 |
CONTAINER 03 | Post-Panamax Containership | 5,101 | 10,000 |
CONTAINER 02 | Neo-Panamax Containership | 10,001 | 14,500 |
CONTAINER 01 | ULCV Containership | 14,501 |
Cargo
Classification Code | Classification | Lower Range (DWT) | Higher Range (DWT) |
CARGO 04 | General Cargo | 0 | 2,999 |
CARGO 03 | General Cargo | 3,000 | 7,499 |
CARGO 02 | General Cargo | 7,500 | 37,999 |
CARGO 01 | General Cargo | 38,000 |
LNG
Classification Code | Classification | Lower Range (Gross Tonnes) | Higher Range (Gross Tonnes) |
LNG 03 | LNG Gas Carrier | 0 | 73,000 |
LNG 02 | LNG Gas Carrier | 73,001 | 147,000 |
LNG 01 | LNG Gas Carrier | 147,001 |
LPG
Classification Code | Classification | Lower Range (Gross Tonnes) | Higher Range (Gross Tonnes) |
LPG 03 | LPG Gas Carrier | 0 | 4,500 |
LPG 02 | LPG Gas Carrier | 4,501 | 26,000 |
LPG 01 | LPG Gas Carrier | 26,001 |
Pure Car Carrier (PCC)
Classification Code | Classification | Lower Range (Gross Tonnes) | Higher Range (Gross Tonnes) |
PCC 03 | PCC/PCTC | 0 | 35,000 |
PCC 02 | PCC/PCTC | 35,001 | 61,000 |
PCC 01 | PCC/PCTC | 61,001 |
Ro-ro
Classification Code | Classification | Lower Range (Gross Tonnes) | Higher Range (Gross Tonnes) |
RORO 03 | Ro-ro Cargo | 0 | 0 |
RORO 02 | Ro-ro Cargo | 8,501 | 48,000 |
RORO 01 | Ro-ro Cargo | 48,001 |
Tanker
Classification Code | Vessel Type | Classification |
TANKER 05 | Crude Oil Tanker | Tanker- Panamax |
TANKER 04 | Crude Oil Tanker | Tanker- Aframax |
TANKER 03 | Crude Oil Tanker | Tanker- Suezmax |
TANKER 02 | Crude Oil Tanker | Tanker- VLCC |
TANKER 01 | Crude Oil Tanker | Tanker- ULCC |
Product Tanker
Classification | Vessel Type |
PRODUCT_TANKER01 | Product Tanker |
Tug
Classification | Vessel Type |
TUG01 | Tug |
FPSO
Classification | Vessel Type | Classification |
FPSO01 | FPSO | Floating drilling production tanker,
floating gas production,
floating gas storage,
floating LNG production and storage FLNG,
floating power station,
floating production tanker,
floating storage tanker |
ETC
Classification | Vessel Type |
ETC01 | ETC All |
