This API allows you to retrieve a vessel’s location history using its shipId over a specified time range, with a maximum limit of 60 days. If you require access to data beyond this period, please contact cx@seavantage.com.
Authentication
The Past Track API uses Basic Authorization on Swagger UI.
Authentication Steps
1.

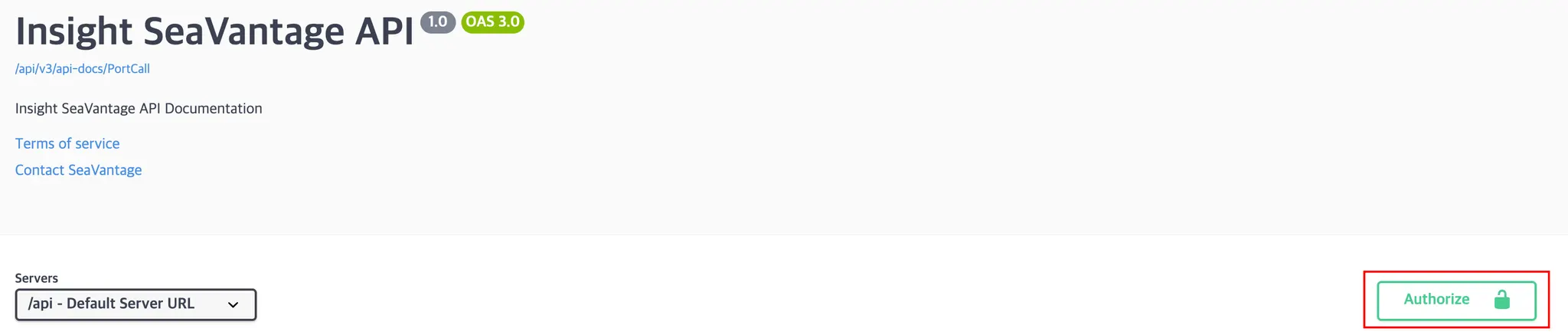

Click the [Authorize] button in the top right corner.
2.
Enter the provided username and password in the pop-up window.
3.
Click [Authorize] again to proceed with authentication.
4.
After successful login, click [Close] to close the window.
All API requests from Swagger UI will automatically include the authorization token.
Request Information
Request URL
Request URL : [GET] https://insight.seavantage.com/api/ship/past-track
Execution Steps
1.
2.

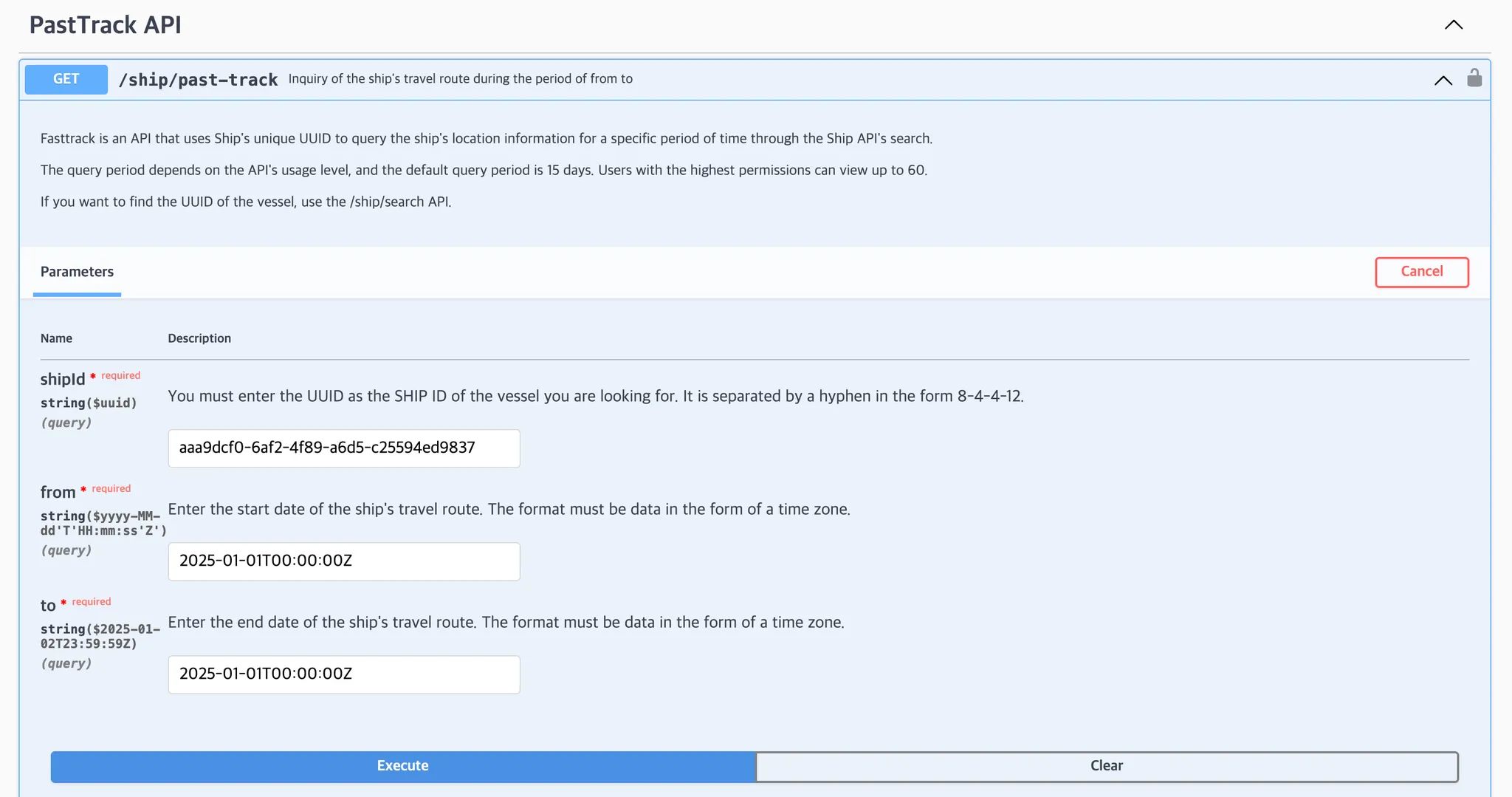

Navigate to the /ship/past-track endpoint.
3.
Click [Try it out] to activate input fields.
4.
Enter values based on the following Parameters:
•
•
from: Start date of the vessel's movement history. Must be in UTC date and time format.
ex) 2025-01-01T00:00:00Z
•
to: End date of the vessel's movement history. Must be in UTC date and time format.
ex) 2025-01-01T23:59:59Z
5.
Click the [Execute] button.
6.
View results in the response section.
Response Information
Sample Response Format
{
"code": 200,
"message": "OK",
"error": false,
"timestamp": "2024-12-01T12:00:00",
"response": [
{
"imoNo": "9637076",
"mmsi": "538005248",
"deviceType": "AIS",
"callSign": "V7CD9",
"shipName": "ARDMORE SEAVANTAGE",
"aisShipType": 80,
"aisDimA": 150,
"aisDimB": 33,
"aisDimC": 8,
"aisDimD": 24,
"aisEta": "05032300",
"aisDestination": "USLCH",
"staticDateTime": "2025-05-05T00:13:04Z",
"timestamp": "2025-05-05T00:13:08Z",
"aisClass": "A",
"nvgStatus": 1,
"rateOfTurn": 0.0,
"speedOverGround": 0.0,
"positionAccuracy": 0,
"longitude": -93.27128167,
"latitude": 29.60246667,
"courseOverGround": 31.0,
"trueHeading": 109,
"elapsed": 0,
"utcSecond": 5,
"dte": 0,
"specialManeuverIndicator": "0",
"raimFlag": "0",
"staticMessageNo": 5,
"locationMessageNo": 3,
"aisMaxDraught": 8.5
}
]
}
JSON
복사
Response Field Descriptions
Top-Level Response Fields
Field | Example Value | Description |
code | 200 | Response status code (used in the same way as standard HTTP status codes).
(See the list of codes below for reference.) |
message | success | Response message (description based on status) |
error | false | Error flag
true: error occurred
false: successful processing |
timestamp | 2025-05-14T01:09:00.834665213 | Time of response creation (UTC) |
response | Array or Empty Array | An array is returned if the vessel exists; otherwise, an empty array is returned. |
Response Codes
Code | Description |
200 | Success |
400 | Bad request |
401 | Unauthorized |
403 | Forbidden |
422 | Unprocessable entity |
429 | Too many requests |
Detailed Response Description
Depth 1 Field Description (response object)
Field | Example Value | Description | Data Type |
imoNo | 9637076 | Ship’s 7-digit International Maritime Organization (IMO) registration number | varchar(10) |
mmsi | 538005248 | Ship’s 9-digit Maritime Mobile Service Identity (MMSI) registration number | varchar(10) |
deviceType | AIS | AIS Equipment Type | varchar(36) |
callSign | V7CD9 | Ship's designated international call sign, used in maritime radio communications. | varchar(7) |
shipName | ARDMORE SEAVANTAGE | Official registered name of the vessel | 선박 별칭 |
aisShipType | 80 | Vessel type classification code transmitted via the Automatic Identification System (AIS)
(See separate AIS Ship Type table below) | smallint |
aisDimA | 150 | Distance from the GPS antenna to the bow
(See AIS dimension image below) | smallint |
aisDimB | 33 | Distance from the antenna to the stern
(See AIS dimension image below) | smallint |
aisDimC | 8 | Distance from the antenna to the port (left) side
(See AIS dimension image below) | smallint |
aisDimD | 24 | Distance from the antenna to the starboard (right) side
(See AIS dimension image below) | smallint |
aisEta | 05151000 | AIS Estimated Time of Arrival (ETA) | varchar(8) |
aisDestination | HOUSTON FOR ORDER | AIS Destination | varchar(32) |
staticDateTime | 2025-01-01T00:00:00Z | Static Information Reception Time: Refers to the time when static information about the vessel was last updated. | timestamp |
timestamp | 2025-01-01T00:00:00Z | Position Information Reception Time: Represents the time when the AIS data was received. | timestamp |
aisClass | A | Class of AIS device:
Class A (commercial)
Class B (smaller vessels) | char |
nvgStatus | 0 | Navigational Status
(See Navigational Status table below) | smallint |
rateOfTurn | 0 | Rate at which the vessel is turning, typically in degrees/min. | real |
speedOverGround | 1 | Current vessel speed relative to the Earth’s surface (in knots). | real |
positionAccuracy | 0 | Indicator of GPS precision
1 = high (<= 10 m)
0 = low (> 10 m) = default | smallint |
longitude | -92.09995833 | Vessel’s latest known position coordinate: longitude | numeric(12, 8) |
latitude | 27.45900833 | Vessel’s latest known position coordinates: latitude | numeric(12, 8) |
courseOverGround | 312.8999938964844 | Direction of the vessel’s movement (degrees) | real |
trueHeading | 229 | Vessel’s actual heading direction | smallint |
elapsed | 0 | Time delay (in minutes) since the last position update | integer |
utcSecond | 45 | UTC Second | smallint |
dte | 0 | Data terminal equipment (DTE) ready
0 = available
1 = not available = default | smallint |
specialManeuverIndicator | 0 | 0 = not available = default
1 = not engaged in special maneuver
2 = engaged in special maneuver (i.e.: regional passing arrangement on Inland Waterway) | char |
raimFlag | 0 | Receiver autonomous integrity monitoring (RAIM) flag of electronic position fixing device
0 = RAIM not in use = default
1 = RAIM in use | char |
staticMessageNo | 5 | Static Message Number | smallint |
locationMessageNo | 1 | Location Message Number | smallint |
aisMaxDraught | 8.1 | Maximum Draught | real |
Appendix
AIS Ship Type
Type Code | Description | Type Code | Description |
0 | Not available (default) | 58 | Medical Transport |
1–19 | Reserved for future use | 59 | Noncombatant ship according to RR Resolution No. 18 |
20 | Wing in ground (WIG), all ships of this type | 60 | Passenger, all ships of this type |
21 | Wing in ground (WIG), Hazardous category A | 61 | Passenger, Hazardous category A |
22 | Wing in ground (WIG), Hazardous category B | 62 | Passenger, Hazardous category B |
23 | Wing in ground (WIG), Hazardous category C | 63 | Passenger, Hazardous category C |
24 | Wing in ground (WIG), Hazardous category D | 64 | Passenger, Hazardous category D |
25–29 | Wing in ground (WIG), Reserved for future use | 65–68 | Passenger, Reserved for future use |
30 | Fishing | 69 | Passenger, No additional information |
31 | Towing | 70 | Cargo, all ships of this type |
32 | Towing: length exceeds 200m or breadth exceeds 25m | 71 | Cargo, Hazardous category A |
33 | Dredging or underwater ops | 72 | Cargo, Hazardous category B |
34 | Diving ops | 73 | Cargo, Hazardous category C |
35 | Military ops | 74 | Cargo, Hazardous category D |
36 | Sailing | 75–78 | Cargo, Reserved for future use |
37 | Pleasure Craft | 79 | Cargo, No additional information |
38–39 | Reserved | 80 | Tanker, all ships of this type |
40 | High speed craft (HSC), all ships of this type | 81 | Tanker, Hazardous category A |
41 | High speed craft (HSC), Hazardous category A | 82 | Tanker, Hazardous category B |
42 | High speed craft (HSC), Hazardous category B | 83 | Tanker, Hazardous category C |
43 | High speed craft (HSC), Hazardous category C | 84 | Tanker, Hazardous category D |
44 | High speed craft (HSC), Hazardous category D | 85–88 | Tanker, Reserved for future use |
45–48 | High speed craft (HSC), Reserved for future use | 89 | Tanker, No additional information |
49 | High speed craft (HSC), No additional information | 90 | Other Type, all ships of this type |
50 | Pilot Vessel | 91 | Other Type, Hazardous category A |
51 | Search and Rescue vessel | 92 | Other Type, Hazardous category B |
52 | Tug | 93 | Other Type, Hazardous category C |
53 | Port Tender | 94 | Other Type, Hazardous category D |
54 | Anti-pollution equipment | 95–98 | Other Type, Reserved for future use |
55 | Law Enforcement | 99 | Other Type, no additional information |
56–57 | Spare - Local Vessel |

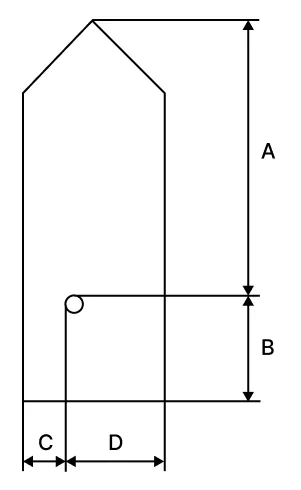

AIS Dimension
Number of bits | Bit fields | Distance (m) | |
A | 9 | Bit 21 - Bit 29 | 0 - 511:
511 = 511m or greater |
B | 9 | Bit 12 - Bit 20 | 0 - 511:
511 = 511m or greater |
C | 6 | Bit 6 - Bit 11 | 0 - 63:
63 = 63m or greater |
D | 6 | Bit 0 - Bit 5 | 0 - 63:
63 = 63m or greater |
The A value should be entered on the vessel’s heading direction (bow).
•
When the reference point of the reported position is unavailable, but dimension information is provided:
◦
A = C = 0, and B ≠ 0, D ≠ 0
•
When both the reference point and dimension information are unavailable:
◦
A = B = C = D = 0 (default)
•
In the message table:
◦
A is the most significant field, D is the least significant field
AIS Navigation Status
Code | Status | Description |
0 | Under way using engine | The vessel is actively moving through the water under engine power. |
1 | At anchor | The vessel is anchored and stationary. |
2 | Not under command | The vessel is unable to maneuver due to exceptional circumstances, such as engine failure or loss of steering. Other vessels should navigate with caution. |
3 | Restricted maneuverability | The vessel's ability to maneuver is limited due to operations or environmental conditions. Other vessels should keep clear. |
4 | Constrained by her draught | The vessel is restricted in its ability to deviate from its course due to its deep draught relative to water depth. |
5 | Moored | The vessel is secured by mooring lines, typically tied to a dock or port facility. |
6 | Aground | The vessel has run aground and is stuck in shallow water. It is immobile until freed. |
7 | Engaged in fishing | The vessel is currently engaged in fishing operations. Navigating vessels should allow space, as nets or lines may be deployed. |
8 | Under way sailing | Indicates that the vessel is currently sailing. This may include movement using sails instead of engine power. |
9 | Reserved for future amendment of navigational status | This value is reserved for future use to represent a specific navigation status not yet defined. |
10 | Reserved for future amendment of navigational status | This value is reserved for future use to represent a specific navigation status not yet defined. |
11 | Power-driven vessel towing astern (regional use) | The vessel is towing another vessel behind it. Most commonly used by tugboats. |
12 | Power-driven vessel pushing ahead or towing alongside (regional use) | The vessel is pushing another vessel ahead or towing it alongside. Common in inland waterway operations. |
13 | Reserved for future use | Reserved by standard bodies for future status codes. |
14 | AIS-SART (active), MOB-AIS, EPIRB-AIS | Distress-related AIS devices are active: AIS-SART (Search and Rescue Transponder), MOB-AIS (Man Overboard), or EPIRB-AIS (Emergency Beacon). Immediate attention may be required. |
15 | Undefined = default (also used by AIS-SART, MOB-AIS and EPIRB-AIS under test) | Represents the default status when the vessel’s navigation state is not explicitly defined. |
