This API retrieves the vessel’s operational schedule for the upcoming 8 weeks based on the entered IMO number, starting from the current date. It is updated on average every four hours.
Authentication
The Operational Vessel Schedules API uses Basic Authorization on Swagger UI.
Authentication Steps
1.

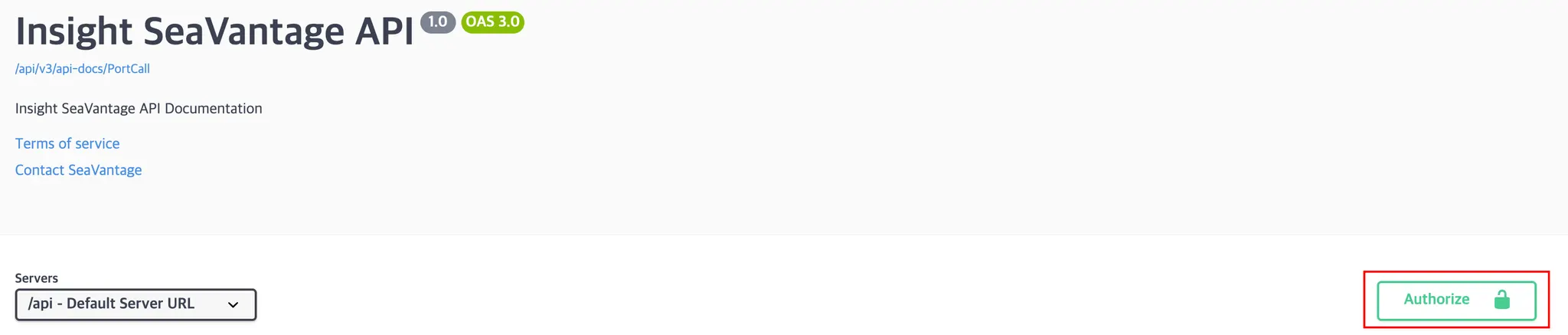

Click the [Authorize] button in the top right corner.
2.
Enter the provided username and password in the pop-up window.
3.
Click [Authorize] again to proceed with authentication.
4.
After successful login, click [Close] to close the window.
All API requests from Swagger UI will automatically include the authorization token.
Request Information
Request URL
Request URL : [GET] https://insight.seavantage.com/api/voyage/schedule
Execution Steps
1.

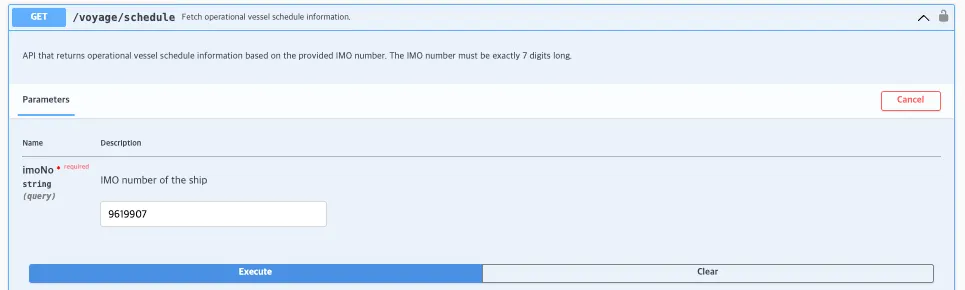

In the Swagger Documentation, select Operational Vessel Schedules from the Select a definition menu at the top right.
2.
Navigate to the /voyage/schedule endpoint.
3.
Click [Try it out] to activate input fields.
4.
Enter values according to the following request parameters:
•
imoNo: The ship’s IMO number
ex) 9619907
5.
Click [Execute].
6.
View results in the response section.
Response Information
The response is returned in the following format, regardless of whether the request is successful or failed.
Sample Response Format
{
"code": 200,
"message": "success",
"error": false,
"timestamp": "2025-08-22T02:36:05.554967279",
"response": {
"ship": {
"shipId": "b7ac555e-8b3a-11e9-b34d-54802853d888",
"shipName": "MAERSK MC-KINNEY MOLLER",
"imoNo": "9619907",
"mmsi": "219018271",
"callSign": "OWIZ2"
},
"calls": [
{
"serviceName": "AE1",
"carrierCode": "MAEU",
"voyageNumber": "530W|536E",
"portId": "89d1b0d6-d5df-11e8-890a-7085c2711781",
"portName": "ROTTERDAM",
"unlocode": "NLRTM",
"nationCode": "NL",
"latitude": 51.92649024,
"longitude": 4.22608932,
"timezone": "+01:00",
"terminalId": "291609a9-a994-4b90-b48d-0b09f0d6d3ad",
"terminalName": "APM 2 TERMINAL MAASVLAKTE II",
"eta": "2025-09-01T12:00:00Z",
"etb": null,
"etd": "2025-09-03T04:00:00Z",
"ata": null,
"atb": null,
"atd": null
}
]
}
}
JSON
복사
Response Field Descriptions
Top-Level Response Fields
Field | Example Value | Description |
code | 200 | Response status code (used in the same way as standard HTTP status codes).
See the list of codes below for reference. |
message | success | Response message (description based on status) |
error | false | Error flag
true: error occurred
false: successful processing |
timestamp | 2025-05-14T01:09:00.834665213 | Time of response creation (UTC) |
response | Object or null | Returns an Object if data exists, or null if no data is found. |
Response Codes
Code | Description |
200 | Success |
400 | Bad request |
401 | Unauthorized |
403 | Forbidden |
422 | Unprocessable entity |
429 | Too many requests |
Detailed Response Description
Depth 1 Field Description (ship object)
Field | Example Value | Description | Data Type |
shipId | b7ac555e-8b3a-11e9-b34d-54802853d888 | SeaVantage unique vessel ID | varchar(36) - UUID |
shipName | MAERSK MC-KINNEY MOLLER | Vessel name | varchar(100) |
imoNo | 9619907 | Vessel IMO registration number | varchar(10) |
mmsi | 219018271 | Vessel unique identifier | varchar(10) |
callSign | OWIZ2 | Call sign | varchar(7) |
Depth 2 Field Description (calls object)
Field | Example Value | Description | Data Type |
serviceName | AE1 | Service route | varchar |
carrierCode | MAEU | SCAC 4-digit carrier code | varchar(15) |
voyageNumber | 530W|536E | Voyage number | varchar(50) |
portId | 89d1b0d6-d5df-11e8-890a-7085c2711781 | Internal port identifier | varchar(36) - UUID |
portName | ROTTERDAM | Port name | varchar(100) |
unlocode | NLRTM | Port UN/LOCODE | varchar(36) |
nationCode | NL | Nation code | varchar(36) |
latitude | 51.92649024 | Latitude | double precision |
longitude | 4.22608932 | Longitude | double precision |
timezone | +01:00 | Port timezone | varchar(36) |
terminalId | 291609a9-a994-4b90-b48d-0b09f0d6d3ad | Internal terminal identifier provided by SeaVantage | varchar(36) - UUID |
terminalName | APM 2 TERMINAL MAASVLAKTE II | Terminal name | varchar(100) |
eta | 2025-09-01T12:00:00Z | Carrier-collected Estimated Time of Arrival (ETA) | timestamp |
etb | 2025-09-01T12:00:00Z | Carrier-collected Estimated Time of Berthing (ETB) | timestamp |
etd | 2025-09-01T12:00:00Z | Carrier-collected Estimated Time of Departure (ETD) | timestamp |
ata | 2025-09-01T12:00:00Z | SeaVantage port call data – Actual Time of Arrival (ATA) | timestamp |
atb | 2025-09-01T12:00:00Z | SeaVantage port call data – Actual Time of Berthing (ATB) | timestamp |
atd | 2025-09-01T12:00:00Z | SeaVantage port call data – Actual Time of Departure (ATD) | timestamp |
