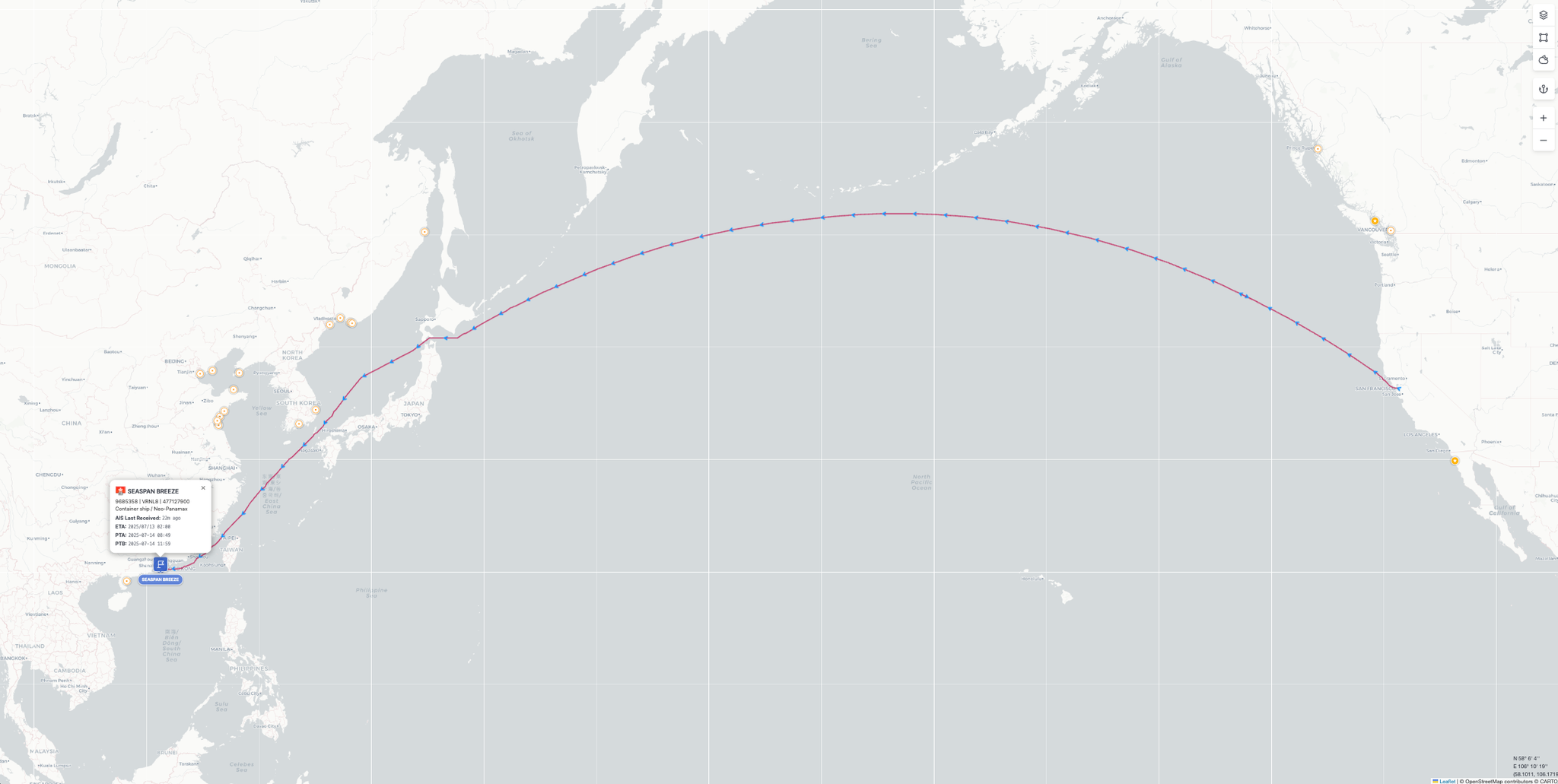

Real-time vessel position, past voyage history, and projected route are visualized on the screen relative to the current time.
Steps to Use the Screen Embed Service
1. Token Issuance
Issue the user token.

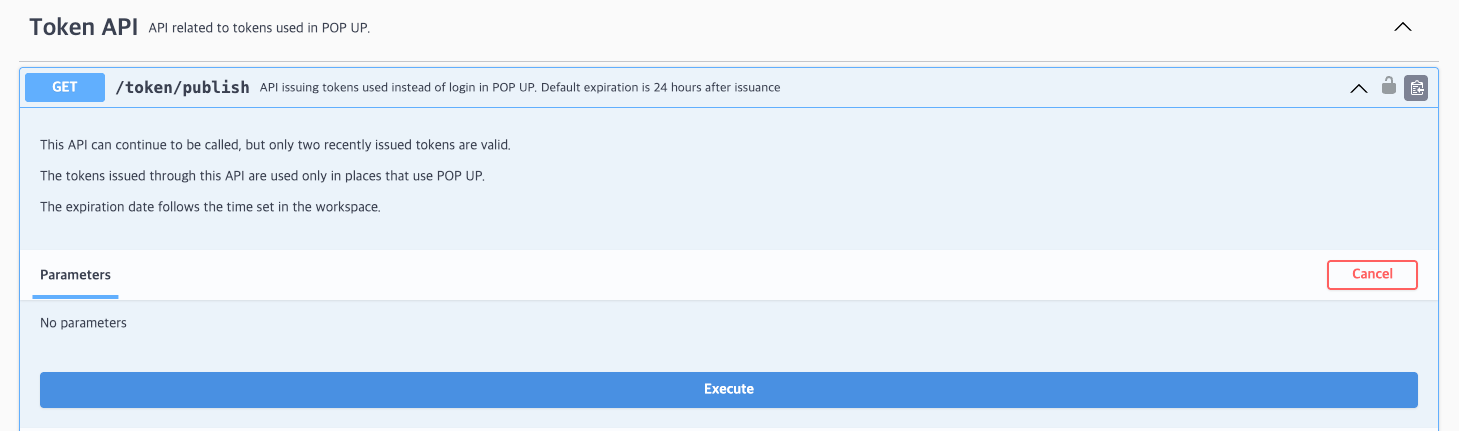

Request URL
[GET] https://insight.seavantage.com/api/token/publish
Execution Steps
1.
2.
Navigate to /token/publish.
3.
Click [Try it out] to activate input fields.
4.
Click [Execute].
5.
View results in the response section.
Notes
•
Tokens are valid for 24 hours. To maintain continuous access, it is recommended to renew them every 12 hours.
•
This API can be called multiple times, but only the two most recently issued tokens remain valid. Previously issued tokens will automatically expire.
2. Embed URL Generation
After issuing the token, combine it with the necessary parameters to generate the embed URL.
Parameter Types
The screen embed feature allows you to configure various ship tracking screens by combining the parameters below. The generated URL can be used in a browser or embedded in an iframe to access the tracking screen.
When tracking a vessel, the imoNo must be included along with the user token.userToken (required)
•
A valid user token issued by SeaVantage
imoNo (required)
•
IMO Number of the vessel to be tracked (7 digits)
Note
•
If the vessel requested for tracking is not already registered in your workspace, it will be automatically added to the workspace.
startDate (optional)
•
Set the start date for displaying past track data
Field | Description |
auto | Display vessel track from the most recent departure port to its current location |
YYYYMMDD | Display vessel track from the specified date to the current location |
Unspecified / Others | Do not display past track data |
destination (optional)
•
Option to select whether to base destination prediction on the entered port (UNLOCODE) or the AIS Destination.
Field | Description |
unlocode | The destination port is set by entering the destination UNLOCODE, and a port marker will be displayed accordingly.
Examples)
1. destination=KRPUS Sets Busan as the destination port.
2. destination=USLGB Sets Long Beach as the destination port.
3. destination=ABCDE Attempts to set ABCDE as the destination port.
(If the entered port (like in example 3 does not exist in SeaVantage, the destination will fail to register.) |
auto | When set to AIS, the system predicts the destination and displays the port marker based on the vessel’s AIS Destination value. |
Unspecified | When none is set, no destination is defined.
If only the routing=auto parameter is provided without a destination, the system will automatically predict the destination based on the AIS Destination and display the estimated route. |
routing (optional)
•
Select the prediction basis for the estimated route calculation
Field | Description |
auto | Predict the destination and display the estimated route based on the AIS Destination |
destination | Display the estimated route based on the value entered in the destination parameter
Example)
1. destination=UNLOCODE : When a UNLOCODE is entered in the destination parameter, the estimated route will be displayed toward the specified port.
2. destination=auto : When "auto" is entered in the destination parameter, the system predicts the destination using AIS (Automatic Identification System) data.
3. If the destination parameter is not entered, no destination prediction will be made. |
Unspecified / Others | Do not display estimated route. |
size (optional)
•
Choose whether to display vessel details as a pop-up or an info bubble:
Field | Description |
small | Display information as an info bubble above the vessel marker |
Unspecified / Others | Use the standard vessel pop-up |
•
If the size parameter is set to small, only minimal vessel information will be displayed: Ship Name, IMO Number, ETA, ATA, and PTA.
•
If the size parameter is not specified or set to any other value, the full vessel information will be shown by default.
Example
1.

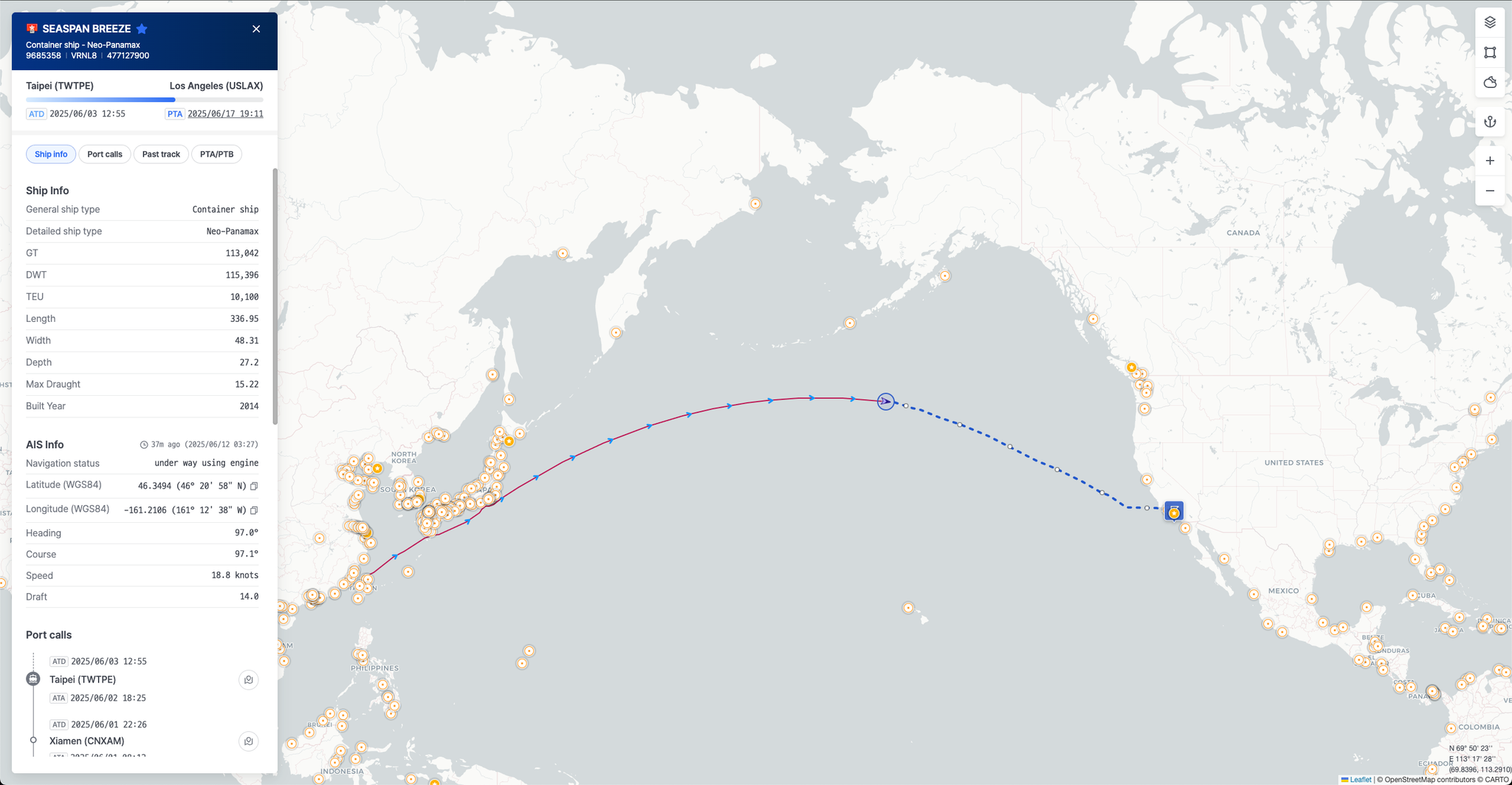

Displays the vessel’s track from the last port of departure up to its current location, predicts the destination based on the AIS Destination, and shows the estimated route to that destination.
https://insight.seavantage.com/ship/tracking?imoNo=9685358&userToken={userToken}&routing=auto&startDate=auto
Plain Text
복사
2.

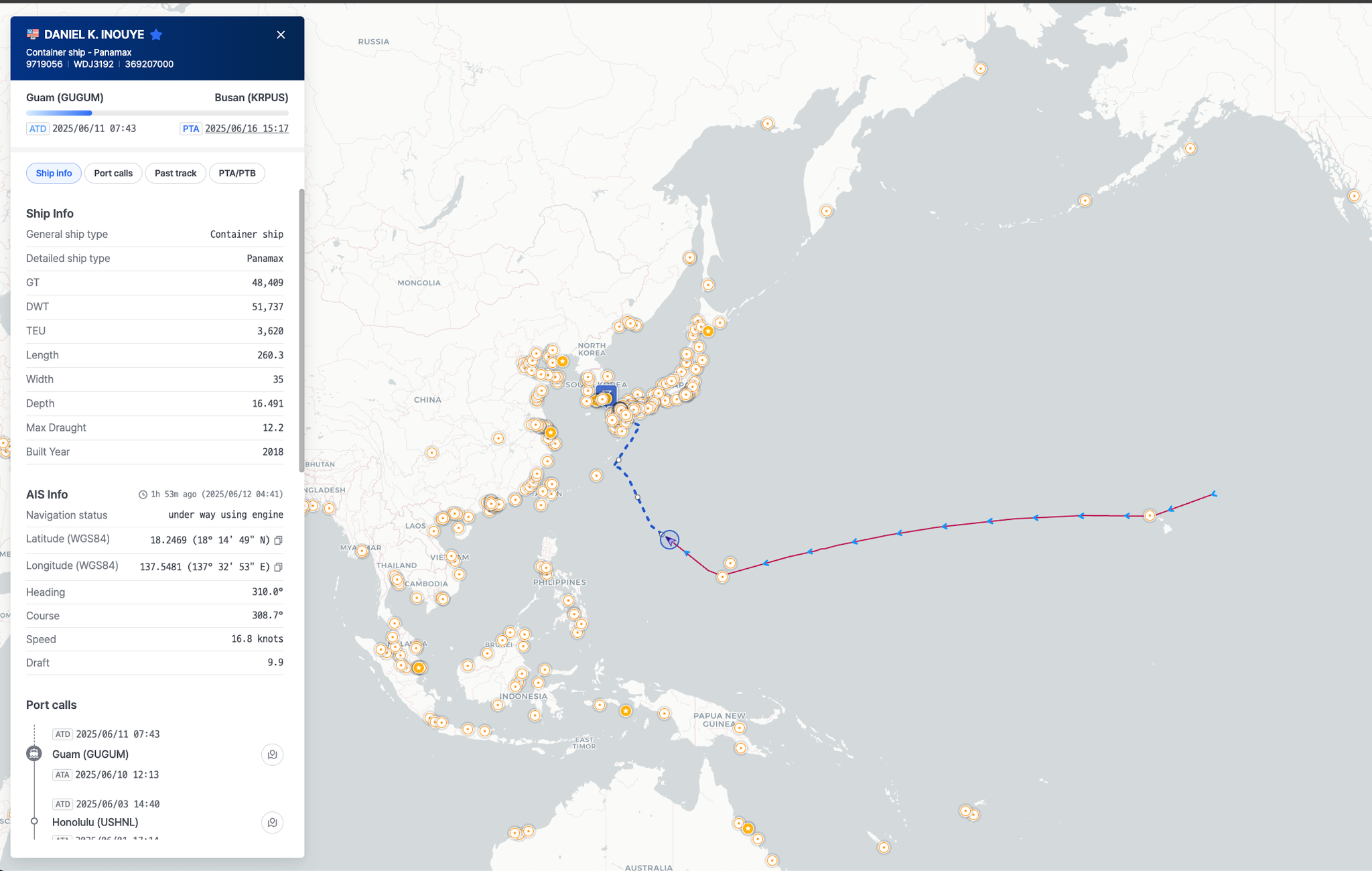

Displays the past track starting from June 1, sets Busan as the destination port, and shows the estimated route.
https://insight.seavantage.com/ship/tracking?imoNo=9719056&routing=destination&userToken={userToken}&destination=KRPUS&startDate=20250601
Plain Text
복사
